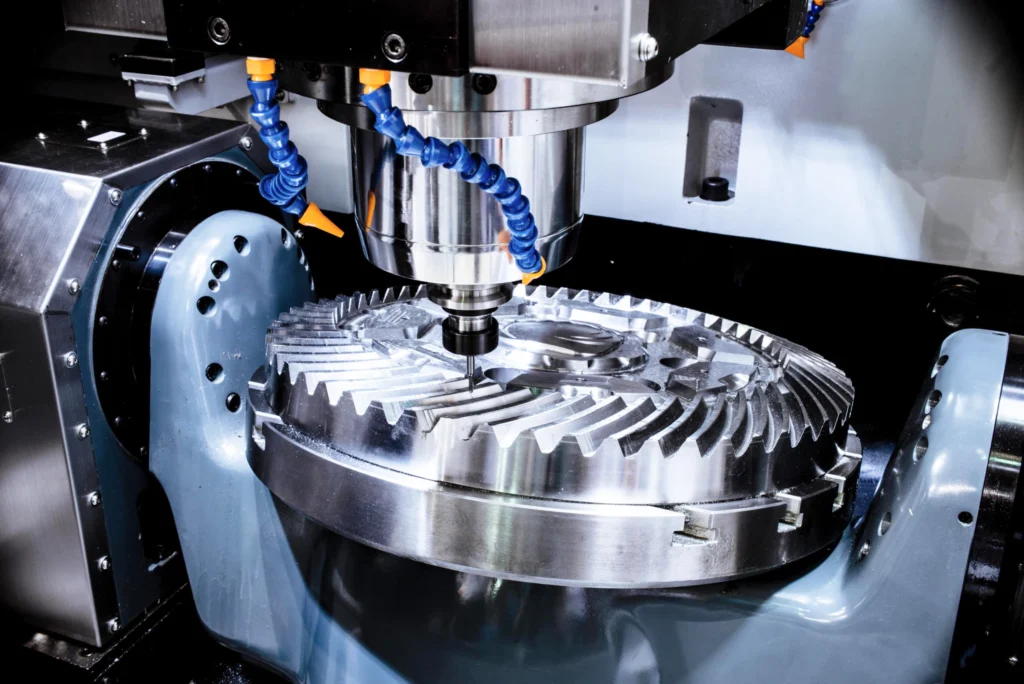

What is 5-Axis Machining？
Multi-axis CNC machining centers come in 3 variations:
5-axis indexed CNC milling, continuous 5-axis CNC milling, and mill-turning centers with live tooling.
These systems are essentially milling machines or lathes enhanced with additional degrees of freedom. For example, 5-axis CNC milling centers allow the rotation of the machine bed or the tool head (or both) in addition to the 3 linear axes of movement.
They require both specialized machinery and operators with expert knowledge.
Advantages of 5-Axis CNC Machining
| 💡 Advantage | 📌 Description |
|---|---|
| High Precision | Achieves tolerances up to ±0.005mm for intricate and complex geometries. |
| Incredible Flexibility | Produces multi-angled, unique-shaped parts that are impossible with traditional CNC. |
| Efficient Process | Single-setup machining reduces errors and boosts consistency across parts. |
| Speedy Production | Faster cycle times and shorter lead times help meet urgent deadlines. |
| Cost Savings | Fewer setups, less waste, and faster delivery result in long-term savings. |
Our Processing Parameters
- Common materials
- Aluminum Alloys, Stainless Steel, Carbon Steel, Alloy Steel, Titanium Alloys, Copper & Copper Alloys, Plastics
- Surface Treatment
- Hard Coating, Black Anodize, Clear Anodize, Hard Chrome, Clear Zinc, Plasma Nitride
- Axes Travel
- X*Y*Z: 1200mm*1400mm*1000mm
- Dimensional tolerance
- Generally ±0.1 mm to ±0.05 mm, our accuracy can be as high as ±0.005mm
Above is a list of the common processing parameters for CNC custom projects. If you require a custom service, please contact brighty@bestprocnc.com.
Industry Application Overview
| Industry | Part Name | Material | Challenge |
|---|---|---|---|
| Aerospace | Support structure | 7075-T6 | Thin wall, 5-face precision |
| Medical | Implant fixture block | Titanium | Biocompatibility, smooth finish |
| UAV / Drone | Main frame component | Carbon Fiber | Lightweight + structural strength |
See more CNC applications across industries → View small batch services
Comparative Analysis of 3-Axis, 4-Axis, and 5-Axis CNC Machining
| Feature | 3-Axis CNC | 4-Axis CNC | 5-Axis CNC |
|---|---|---|---|
| Degrees of Freedom | Moves in X, Y, Z axes | Adds rotation around X or Y axis | Adds rotation around X and Y axes |
| Complexity of Shapes | Limited to geometric shapes | Can create more complex shapes | Can create highly complex shapes |
| Setup Times | Multiple setups may be needed for complex parts | Usually less than 3-axis as one more side of a part can be machined | Single setup due to simultaneous multi-axis movement, saves time |
| Surface Finish | Potential limitations due to tool geometry | Improved access over 3-axis | Best, continuous tool-path movement, less scalloping |
| Tool Access & Collision | Potential limitations due to tool geometry | Improved access over 3-axis | Best access and collision avoidance |
| Cost | Lowest among the three due to simpler mechanics | Moderately higher due to additional axis | Highest, due to complex mechanics and software |
Quality Assurance & Quality Control

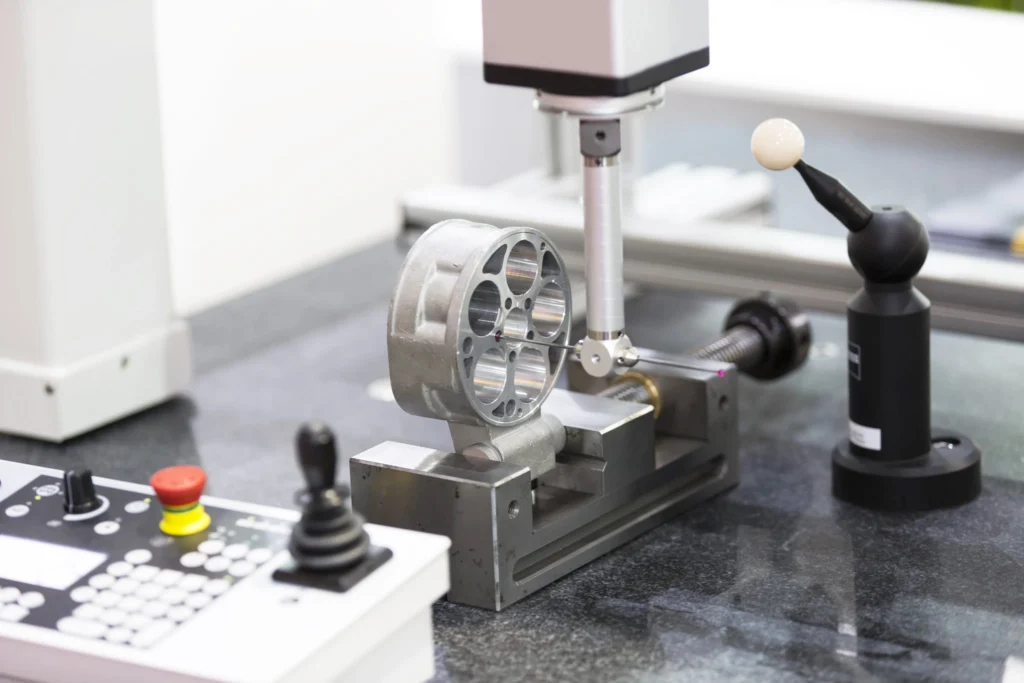

Our integrated quality assurance (QA) and quality control (QC) systems ensure the highest production standards. ISO standard certifications uphold our quality management system, while the QC team conducts detailed inspections using advanced, calibrated equipment like CMM, VMS, calipers, hardness testers, etc… This dual approach “focused on prevention and precise inspection” ensures all parts meet stringent specifications and customer requirements, maintaining top precision, performance, and reliability.
| 🔧 What We Offer | 📌 Details |
|---|---|
| Drawing Analysis | Review your CAD or PDF files to confirm feasibility and material compatibility |
| Material Suggestion | Help you choose the best-fit plastic or metal for strength, cost, and function |
| Prototype Machining | Fast prototyping for concept validation or functional testing |
| Sample Production & Testing | Produce and evaluate samples to ensure quality and performance |
| One-on-One Technical Support | Talk directly with experienced engineers for tailored advice |
👉 Not sure where to start? Contact our team – brighty@bestprocnc.com – we’ll guide you through the process.
